The F805-FB performs its own sequential logic routines to mix a series of multi material batches without the need for a separate control device. The F805-FB acts as its own “Soft PLC” but with no required programming.
Features...
... The F805-FB can store up to 200 formulas.
... Each formula and material can be assigned an 8 character alphanumeric name.
... Each formula and material can be assigned an 8 character alphanumeric name.
... Each formula can be run multiple times by entering the number of cycles.
... Each named material can have nine (9) separate parameters entered for the material in that bin.
  • SP1 and FF (2 speed control for each bin gate)
  • Over
  • Under
  • Free Fall control
  • Auto jog
  • Comparison Inhibit Timer
  • Compare Time
  • Remaining Weight (Enables inventory control of tank or silo material supply)
... Target weights for each material are entered in the formula setup screen. Target can be entered by weight or percentage.
... The standard 50-pin I/O connector allows outputs for control of up to 5 bin gates. An optional plug in card (BEC - Bin Expansion Card) allows I/O pins for an additional 11 bins.
... Accumulator functions are available for each formula processed. You can review accumulation totals by individual material, or as a listing of all the formulas, the number of batch cycles run, and the formula totals.

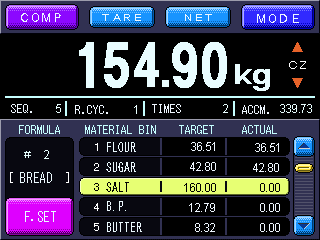

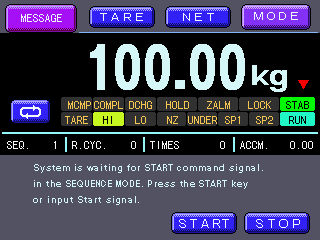

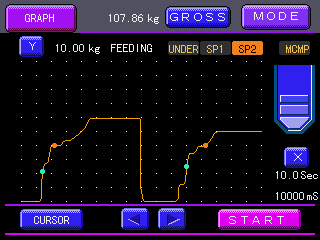

... The Operation display screen highlights the active material during the batching process, also shows the actual final weight of each ingredient within the formula, the current weight cycle and the number of remaining cycles. The sequence number is also displayed which helps to troubleshoot an alarm or error..
... Power down sequence protection makes sure the F805-FB will restart from the last stop point after power supply recovery.
... Limit of Target makes sure the actual formula total (up to 30 steps of a formula) weight is not beyond the capacity of the batching hopper.
... Weighing Time Limit - the duration of a formula operating, if a formula weighing cycle could not be finished during the set durance gives out error signal and views on the touch screen. Combine this function with remaining weight of material (in Material setting screen), to maintain the material inventory.
... There are seven different sequence control processing patterns, providing flexible solutions to the problems you may meet in the formula batch. They not only included the material bin inventory and multi-ingredient weighing processing, but also discharging to mixer, restart of the next formula cycle, confirmation of discharge gate position and so on.
